QTP - How to get all Object Indentification Properties?

There are two ways how to get all properties of an object in QuickTest Professional:
  1. Manually
  2. Programmatically
Use QTP Object Spy to get manually object properties.
I've captured properties of ''Advanced Search" link from Google's page:
So, QTP Object Spy shows these values:
QTP Spy ObjectUsing QTP Object Spy you can get Run-time Object Properties and Test Object Properties.
It's possible to get these properties programatically:
  • The GetTOProperty and GetTOProperties methods enable you to retrieve a specific property value or all the properties and values that QuickTest uses to identify an object.
  • The GetROProperty returns the current value of the test object property from the object in the application.

GetTOProperty differs from the GetROProperty method:
  • GetTOProperty returns the value from the test object's description.
    Test Object Properties are stored in the QTP Object Repository.
  • GetROProperty returns the current property value of the object in the application during the test run.
    QTP reads Run-time Object Properties from actual objects during the runnins can be read and accessed during the run session.

That means that when you work with objects using QTP Descriptive Programming (DP), you will be able to access run-time object properties only (using GetROProperty function). Test object properties (using GetTOProperty function) will not be accessed, because QTP DP doesn't work Object Repository.

There is a problem with Run-time object properties.
In contrast to GetTOProperties (which returns the collection of all properties and values used to identify the test object), GetROProperties function does NOT exist!
Once again - GetROProperties function does NOT exist!


Well, how to get all Object Indentification Properties of an object?
Answer:
We can read them from Windows Registry.

The following registry key contains properties of a given test object:
HKEY_LOCAL_MACHINE\SOFTWARE\Mercury Interactive\QuickTest Professional\MicTest\Test Objects\_Test_Object_\Properties

For example, I've opened:
HKEY_LOCAL_MACHINE\SOFTWARE\Mercury Interactive\QuickTest Professional\MicTest\Test Objects\Link\Properties and I've got properties of Link object:

Please note that you can find the same Link Identification Properties in QuickTest Professional Help:
Link Indentification Properties from QuickTest Professional Help
QTP Object Identification Properties can be used:
  • in the object repository description
  • in programmatic descriptions
  • in checkpoint and output value steps
  • and as argument values for the GetTOProperty and GetROProperty methods

So we have to read all Identification Properties from the registry.
This QTP code reads Link Identification Properties:
Const HKEY_LOCAL_MACHINE = &H80000002
Set oReg = GetObject("winmgmts:{impersonationLevel=impersonate}!\\.\root\default:StdRegProv")

sKeyPath = "SOFTWARE\Mercury Interactive\QuickTest Professional\MicTest\Test Objects\Link\Properties"
oReg.EnumValues HKEY_LOCAL_MACHINE, sKeyPath, arrNames


As a result, arrNames array contains all names of properties.
To prove my words I use this QTP script:
sNames = "Identfication Properties:" & vbNewLine

For
i = 0 to UBound(arrNames)
    sNames = sNames & arrNames(i) & vbNewLine
Next

MsgBox
sNames
The result is:
Compare these Link Identification Properties with properties from the registry. They are the same!

So, we can read names of properties.

Next step is to read their values. It can be archived using GetTOProperty or GetROProperty.
Also, I'm going to show how GetTOProperty and GetROProperty work for Test Object (located in QTP Object Repository) and Run-time Object (actual object, created during the run session).

  1. Properties of Test Object
    QTP script is:
    ' Link("Advanced Search") is an object from QTP Object Repository
    Set TestLink = Browser("Google").Page("Google").Link("Advanced Search")

    sNamesTO = "GetTOProperty for Test Object" & vbNewLine & "Identfication Properties: Values" & vbNewLine
    sNamesRO = "GetROProperty for Test Object" & vbNewLine & "Identfication Properties: Values" & vbNewLine

    For i = 0 to UBound(arrNames)
        sNamesTO = sNamesTO & arrNames(i) & ": " & TestLink.GetTOProperty(arrNames(i)) & vbNewLine
        sNamesRO = sNamesRO & arrNames(i) & ": " & TestLink.GetROProperty(arrNames(i)) & vbNewLine
    Next

    MsgBox sNamesTO
    MsgBox sNamesRO
    • Test Object Properties of Test Object
      Test Object Properties of Test Object and their values are:
      Test Object Properties for Test Object
    • Run-time Object Properties of Test Object
      Run-time Object Properties of Test Object and their values are:
      Run-time Object Properties for Test Object

  2. Properties of Run-time Object
    QTP script is:
    ' Link("text:=Advanced Search") is a dynamic run-time object
    Set TestLink = Browser("Google").Page("Google").Link("text:=Advanced Search")

    sNamesTO = "GetTOProperty for Run-time Object" & vbNewLine & "Identfication Properties: Values" & vbNewLine
    sNamesRO = "GetROProperty for Run-time Object" & vbNewLine & "Identfication Properties: Values" & vbNewLine

    For i = 0 to UBound(arrNames)
        sNamesTO = sNamesTO & arrNames(i) & ": " & TestLink.GetTOProperty(arrNames(i)) & vbNewLine
        sNamesRO = sNamesRO & arrNames(i) & ": " & TestLink.GetROProperty(arrNames(i)) & vbNewLine
    Next

    MsgBox sNamesTO
    MsgBox sNamesRO
    • Test Object Properties of Run-time Object
      Test Object Properties of Run-time Object and their values are:
      Test Object Properties and their values of Run-time ObjectWhy almost all properties are empty?

      As I said, GetTOProperty function gets values from Test Object, which is stored in QTP Object Repository. Since Run-time Object is a dynamic object, it's not stored in QTP Object Repository. That's why GetTOProperty function cannot read object's properties.

      Look at the above screenshot again. The only one property ('text') contains its value ('Advanced Search'). We used this property to create description for our link:
      Set TestLink = Browser("Google").Page("Google").Link("text:=Advanced Search")
      That's why this Run-time Object contains the only property.

    • Run-time Object Properties of Run-time Object
      Run-time Object Properties of Run-time Object and their values are:
      Run-time Object Properties of Run-time ObjectAs you can see, we got the same Run-time Object Properties both for Test Object and for Run-time Object. I can explain it.
      During the run session, QTP creates a Run-time copy of Test Object. That's why Run-time Object Properties were the same for Test Object and Run-time Object.

    Note: You can download final QTP script here.
--
Dmitry Motevich


Related articles:


How about automatic receiving such QTP tutorials?
Just subscribe to this blog RSS feed or by Email. (How to subscribe? VIDEO guide)




Do you like this QTP visual tutorial? Feel free to place it on your site or blog.


4 ways to get & count objects in QTP

Imagine simple and practical QTP tasks:
  • How to count all links on Web page?
  • How to get them and click each link?
  • How to get all WebEdits and check their values?

I'm going to show 4 approaches how to get lists of UI controls and process them (for example get their count).
As an example, I will work with links on Google Labs page. My goal is to get the list of links and count them.

I've added Google Labs page to my Object Repository and now it looks like:
I use Object Repository (OR) to simplify my demo-scripts.
Since the browser & the page were added to OR, we can use them later like:
Browser("Google Labs").Page("Google Labs").

Now we are ready to start!

  1. QTP Descriptive Programming (QTP DP) and ChildObjects QTP function
    The approach uses Description object, which contains a 'mask'
    for objects we would like to get.
    QTP script is:
    Set oDesc = Description.Create()
    oDesc("micclass").Value = "Link"
    Set
    Links = Browser("Google Labs").Page("Google Labs").ChildObjects(oDesc)
    Msgbox "Total links: " & Links.Count

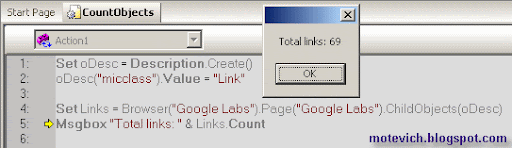

    The result of this QTP script is:
    ChildObjects returns the collection of child objects matched the description ("micclass" is "Link") and contained within the object (Page("Google Labs")).


  2. Object QTP property and objects collections
    QTP can work with DOM:
    Set Links = Browser("Google Labs").Page("Google Labs").Object.Links
    Msgbox "Total links: " & Links.Length
    I use Object property of Page object. It represents the HTML document in a given browser window.
    This document contains different collections - forms, frames, images, links, etc.
    And we use Length property to get the number of items in a collection.

    The result is the same as for the previous QTP script:


  3. Object QTP property and GetElementsByTagName method
    Again, we can get access to
    the HTML document and use its GetElementsByTagName method.
    As the name says,
    GetElementsByTagName method returns a collection of objects with the specified tag.
    Since we are going to get all link, we should use "a" tag.

    QTP script is:

    Set Links = Browser("Google Labs").Page("Google Labs").Object.GetElementsByTagName("a")
    Msgbox "Total links: " & Links.Length
    The result is the following:

    Note: There is another way how to select objects by tag name:
    Set Links = Browser("Google Labs").Page("Google Labs").Object.all.tags("a")
    Msgbox "Total links: " & Links.Length
    The result will be the same. 69 link will be found.


  4. XPath queries in QTP
    The idea of this approach is to use XPath queries on a source code of Web page.
    For example, "//a" XPath query returns all "a" nodes (= links) from XML file.

    There is one problem. Web page contains HTML code, which looks like XML code but actually it is not.
    For example:
    • HTML code can contain unclosed img or br tags, XML code cannot.
    • HTML code is a case-insensitive markup language, XML is a case-sensitive markup language, etc
      More details here.

    So, we have to convert HTML source code into XML. The converted code is named as XHTML.

    You can convert HTML documents into XHTML using an Open Source HTML Tidy utility.
    You can find more info about how to convert HTML code into XHTML code here.

    I will use the final QTP script from this page, a bit modified:

    ' to get an HTML source code of Web page
    HtmlCode = Browser("Google Labs").Page("Google Labs").Object.documentElement.outerHtml

    ' save HTML code to a local file
    Set fso = CreateObject("Scripting.FileSystemObject")
    Set f = fso.CreateTextFile("C:\HtmlCode.html", True, -1)
    f.Write(HtmlCode)
    f.Close()

    ' run tidy.exe to convert HTML to XHTML
    Set oShell = CreateObject("Wscript.shell")
    oShell.Run "C:\tidy.exe --doctype omit -asxhtml -m -n C:\HtmlCode.html", 1, True ' waits for tidy.exe to be finished

    ' create MSXML parser
    Set objXML = CreateObject("MSXML2.DOMDocument.3.0")
    objXML.Async = False
    objXML.Load("C:\HtmlCode.html")

    XPath = "//a" ' XPath query means to find all links
    Set Links = objXML.SelectNodes(XPath)
    Msgbox "Total links: " & Links.Length
    Note: you can download tidy.exe here for above QTP script.

    This QTP script leads to the same results - 69 links found:
    (Click the image to enlarge it)


  5. Bonus approah
    Why don't you count all Wen page objects manually? :) Open a source code of the page and start counting :)
    Just joking :)

Summary:
  • I shown 4 practical approaches how to count Web page links.
    Similarly you can process images, webedits, etc
  • Each approach gets a list of objects.
  • First approach (QTP DP + ChildObjects) is the most easy
  • Second & third approaches (Object + collections; Object + GetElementsByTagName) will work on Internet Explorer, because they use DOM methods
  • Fours approach is biggest but it is more powerful. It allows to use complex XPath queries.
